STRATASYS J5 DIGITAL ANATOMY 3D PRINTER
Create Lifelike Patient-specific Models On Demand
Now Serving US & Canada
Make the Impossible POssible
The Stratasys J5 Digital Anatomy 3D Printer (DAP) creates ultra-realistic, anotomical models using materials such as BoneMatrix, GelMatrix, TissueMatrix and RadioMatrix that simulate biomechanical properties of tissue, cartiledge and bone.

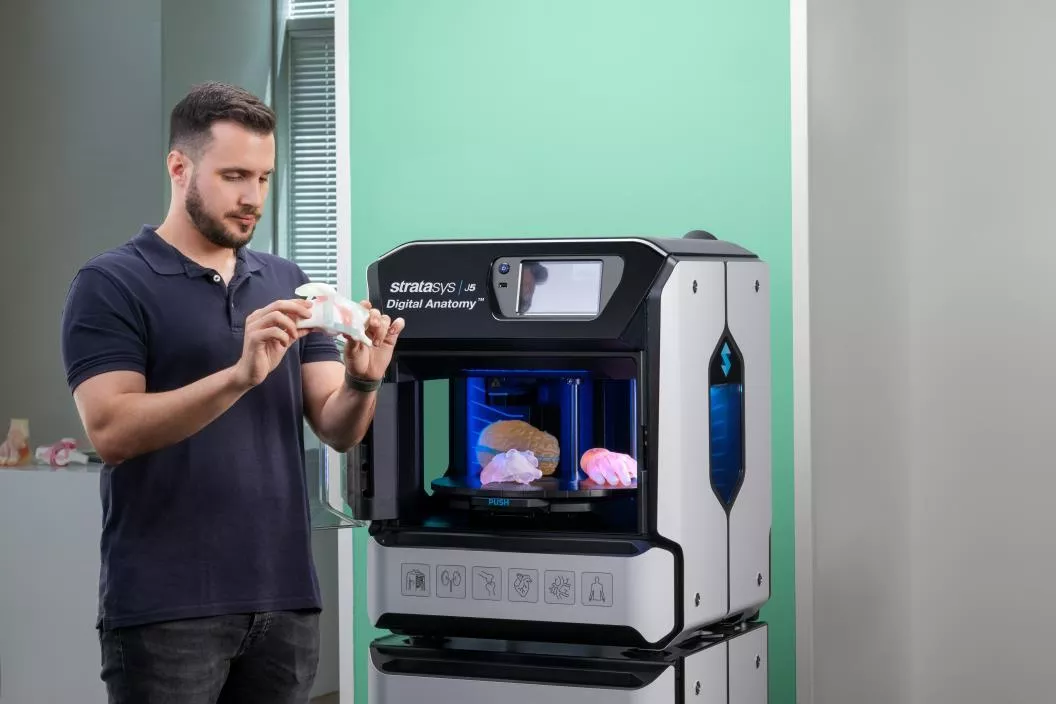

Features
Accurate
Produce biomechanical medical models that replicate the look, feel, and responsiveness of human anatomy.
Reliable
Facility-friendly, safe, and easy to maintain for on-demand printing day in and day out.
Compact Yet Powerful
The innovative turntable-style build platform and stacked layout pack a large build size and multimaterial printing into a small footprint.
Intuitive
Prepare and manage models with Stratasys' easy-to-use GrabCAD Print Digital Anatomy Software and touchscreen user interface.
Endless possibilities, unmatched realism
The Stratasys J5 Digital Anatomy 3D Printer provides those in the healthcare industry the ability to experience and educate themselves and their patients on specific cases before going into the Operating Room.
ultrarealistic 3D printed Models
As each person is unique, the need for customized, case-specific models becomes crucial. Using the J5 Digital Anatomy 3D printer, you can harness the ability to print in full color with multiple material properties — resulting in models that not only look real, they also feel real.
Biomechanical Accuracy
The J5 Digital Anatomy 3D Printer is 510k cleared for clinical diagnostics. When you combine the ability to print with ISO 10993-1:2018 and ISO 18563-1:2017 biocompaitble materials along with the materials that can be used in a range of sterilization methods, you have the medical powerhouse needed in a facility-friendly environment.
Materials
The J5 Digital Anatomy 3D Printer is a full-color printer with the capacity to print four materials including two biocompatible resins.
Full-color capability allows for realistic modeling that can set labs apart in the marketplace.
Radiomatrix
BoneMatrix enables the creation of medical models with realistic features for X-ray and CT imaging, providing exceptional visibility of anatomical structures, medical devices, and implants for surgical navigation, training, and testing.
BoneMatrix
BoneMatrix creates intricate material depositing patterns that imitate porous bone structures, fibrotic tissues, and ligaments. It is a resilient and flexible material with memory to maintain its shape.
GelMatrix
GelMatrix enables the printing of intricate vascular structures in various sizes. The advanced material has a pudding-like consistency, making it easy to clean blood vessel models by removing the internal support material.
TissueMatrix
Utilizing the softest commercially available 3D printing material, TissueMatrix allows you to create models that closely resemble native organ tissue in terms of feel and behavior when subjected to force.How does it Compare to Other Medical 3D Printers?
| Overview |
A compact platform now enables the creation of both visual and functional anatomical models with high biomechanical precision and realism |
The cost-effective, compact medical modeling printer offers multi-material and multicolor capabilities, allowing you to create brilliantly vivid anatomical models that are sterilizable and biocompatible. |
The most advanced medical modeling printer gives you the ability to create biomechanically accurate anatomical models as well as radiologically realistic phantoms and models. |
| Max Materials |
5 |
5 |
7 |
| Tray Area |
Up to 1,174 cm² |
Up to 1,174 cm² |
1,911 cm² |
| Support Material |
|
|
|
Stratasys J5 Digital Anatomy Printer Specifications
Model Materials
- Biocompatible materials:
- Biocompatible Rigid Transparent (MED610)
- Biocompatible Opaque (MED615RGD™ IV)
- Biocompatible Digital ABS Plus™ (MED531 and MED515+ )
- Rubber like:
- Elastico®Clear (FLX934)
- Elastico®Black (FLX984)
- Rigid Transparent Colors:
- VeroCyan™V (RGD845)
- VeroMagenta™V (RGD852)
- VeroYellow™V (RGD838)
- VeroUltra™ClearS (RGD821)
- VeroUltra™Black (RGD864)
- VeroUltra™White (RGD824)
- VeroBlackPlus™ (RGD875)
- DraftWhite (MED858)
- Digital Anatomy Materials:
- TissueMatrix™ (MED410)
- GelMatrix™ (FLG111)
- BoneMatrix™ (RGD526)
- RadioMatrix™ (MED410)
Supported Sterilization Processes
- Steam (4 minutes at 132 °C)
- Gamma (25 – 50 kGy)
- EtO (specifications available upon request)
Digital Model Materials
- Composite materials including over 500,000 colors
- Hundreds of presets available to mimic different anatomies with Digital Anatomy materials
Support Materials
- SUP710S™ (WaterJet removable)
- WSS™150 (Water soluble, not compatible with the Digital Anatomy materials)
Build Tray
- Printing area: 1,174 cm2
- Max Part Size: Up to 140 x 200 x 190 mm (5.51 x 7.87 x 7.48 in.)
Layer Thickness
Horizontal build layers down to 18 microns (0.0007 in.)
Accuracy
Deviation from STL dimensions with rigid materials, based on size: under 100 mm: ±150μ; above 100 mm: ±0.15% of part length.*
Network Connectivity
LAN – TCP/IP
System Size and Weight
651 x 661 x 1511 mm (25.63 x 26.02 x 59.49 in.); 228 kg (503 lbs.)
Operating Conditions
Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30 – 70% (non-condensing)
Power Requirements
100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
Regulatory Compliance
CE, FCC, EAC
Software
GrabCAD Print
Build Modes
- High Quality Speed (HQS) Compatible with Digital Anatomy materials.
- Long Print (LP)
- High Speed (HS)
Software
GrabCAD Print
GrabCAD Print makes 3D printing easy, with thoughtful features:
- Automatically corrects files and reduces print time with automatic tray arrangement.
- Calculates the time and material resources needed for production before printing.
- 3MF file supported – significantly simplifies color assignment in your workflow.
- New feature alerts the user if there has been cross-contamination with a biocompatible material.
- Schedule and monitor the print job remotely from your mobile device or browser.
- Get automatic alerts remotely when the job is printing and finished.
