STRATASYS J5 MediJet
The All-in-One Medical Printer
Now Serving US & Canada
The all-in-one medical printer
The Stratasys J5 MediJet is setting a new standard for medical modeling. Service multiple departments and create more models with less handling — all within a compact footprint. Print pre-surgical planning models, training and education models, surgical guides, and medical device development models with a certified system — all on one platform.
"Data demonstrates that patient satisfaction improves when 3D medical models are used as part of education for informed consent." 123
References:
1 Yang, T., Tan, T., Yang, J., Pan, J., Hu, C., Li, J., & Zou, Y. (2018). The impact of using three-dimensional printed liver models for patient education. The Journal of International Medical Research, 46(4), 1570-1578, https://doi.org/10.1177/0300060518755267.
2 Diment, L.E., Thompson, M. S., & Bergmann, J. (2017). Clinical efficacy and effectiveness of 3D printing: a systematic review. BMJ open, 7(12), e016891. https:/doi.org/10.1136/bmjopen-2017-016891.
3 Kim, P. S., Choi, C. H., Han, I. H, Lee, J. H., Choi, H. J., & Lee, J. I. (2019). Obtaining informed consent using patient-specific 3D printing cerebral aneurysm model. Journal of Korean Neurosurgical Society, 62(4), 398-404, https://doi.org/10.3340/jkns.2019.0092.
Features
Compact
The best-in-class footprint to printing tray ratio on the market means less bulk in your lab.
Ultra-Quiet
The J5 operates under 53 decibels, about the same as a refrigerator.
Easy to Use
Requires zero mechanical calibrations and features a “ready-to-print” mode.
HIGH Quality
High resolution, fast prints, and a full-color range.
The new standard
The J5 MediJet is a powerful tool for a range of medical applications from surgical planning, to testing and education. For functional applications like surgical guides and medical device designs, biocompatible materials provide reliable prints that can be sterilized. Training and educational applications benefit from the color and clarity of the VeroVivid family.
30% Lower Cost per part
The J5 MediJet is designed to minimize the cost of ownership. Watch savings stack up with significantly reduced part cost compared to outsourcing, and faster print times than comparable solutions. Plus, the all-in-one platform eliminates the need for multiple printers.
A simplified
3D Printing Workflow
Don't let clunky software and slow print time hinder your teams. The J5 MediJet prints at speeds 30% faster than comparable machines, and the large build tray can hold multiple models in a single print. Paired with the user-friendly GrabCAD Print Software , the J5 MediJet makes medical 3D printing easy.
Materials
The J5 MediJet is a full-color printer with the capacity to print four materials including two biocompatible resins.
Full-color capability allows for realistic modeling that can set labs apart in the marketplace.
vero family
Combining dimensional stability and fine detail, Vero materials can simulate the appearance of anything you can imagine. With a combination of clarity, stability, and surface smoothness, model appearance is always brilliant. Learn More
Elastico clear
Elastico Clear (FLX934) is a flexible rubber-like material .
MED610
MED610 is a transparent, biocompatible PolyJet material medically approved for bodily contact. Designed for both medical and dental applications, the material is approved for permanent skin contact (over 30 days) and limited mucosal membrane contact (up to 24 hours). Learn More

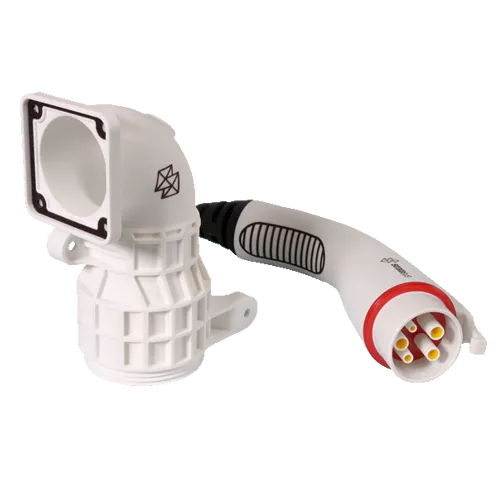

MED615
An ivory opaque biocompatible material medically approved for bodily contact. The material is approved for permanent (more than 30 days) contact to intact skin, and limited (up to 24 hours) contact to tissue and bone. Learn MoreHow Does it Compare to Current MEDICAL Technology?
|
|
|
|
| J5 MediJet™ | J750 Digital Anatomy™ | |
| Key Value Proposition |
Multi-material and multicolor capabilities allow you to create
brilliantly vivid anatomical models and drilling and cutting guides* that are sterilizable and biocompatible, with a certified system — all on one platform. |
If you’re looking to create advanced medical models that
not only look the same but also have close to the same biomechanical properties of native tissue and bone — this is the solution for you. |
| Certifications |
• 510k cleared for clinical diagnostic use with leading
segmentation vendors • Biocompatibility certification (documents available upon request) - ISO 10993-1:2018 for limited contact to tissue and bone contact and permanent contact to intact skin - ISO 18562-1:2017 for breathing gas pathways in healthcare applications • Sterilization methods - Steam, Gamma and EtO for MED610 and MED615RGD - Steam, Gamma, and EtO for Rigid Transparent family • ISO 13485 certified (material and hardware manufacturing sites) |
• 510k cleared for clinical diagnostic use with leading
segmentation vendors • Biocompatibility certification (documents available upon request) - ISO 10993-1:2018 for limited contact to tissue and bone contact and permanent contact to intact skin - ISO 18562-1:2017 for breathing gas pathways in healthcare applications • Sterilization methods - Steam, Gamma and EtO for MED610 and MED615RGD • ISO 13485 certified (material and hardware manufacturing sites) |
| Applications |
• Pre-surgical planning models
• Training and education models • Surgical guides and tooling* • Medical device development models |
All models can mimic close to the same biomechanical
properties as native tissue and bone enabling you to cut, suture, drill and insert devices just as you would with human anatomy. • Pre-surgical planning models • Training and education models • Medical device development models |
Stratasys J5 MediJet Specifications
Model Materials
- Biocompatible materials:
- Biocompatible rigid transparent (MED610)
- Biocompatible Opaque (MED615RGD™ IV)
- Rubber like:
- Elastico Clear (FLX934)
- Rigid Transparent Colors:
- VeroCyan™V
- VeroMagenta™V
- VeroYellow™V
- VeroUltra™ClearS
- VeroBlackPlus™
- DraftWhite (MED837)
Supported Sterilization Processes
Steam (4 minutes at 132 °C), Gamma (25 – 50 kGy),
EtO (specifications available upon request)
Digital Model Materials
Unlimited number of composite materials including over 500,000 colors
Support Materials
SUP710™ (Water Jet removable)
Build Tray
Printing area: 1,174cm2
Max part size: Up to 140 x 200 x 190mm (5.51 x 7.87 x 7.48 in.)
Layer Thickness
Horizontal build layers down to 18 microns (0.0007 in.)
Accuracy
Deviation from STL dimensions with rigid materials,based on size:
under 100 mm – ±150μ; above 100 mm – ±0.15% of part length.*
* true for 67% (1 sigma) models printed for future information can be found in the spec sheet
Network Connectivity
LAN – TCP/IP
System Size and Weight
651 x 661 x 1511mm (25.63 x 26.02 x 59.49 in.); 228 kg (503 lbs.)
Operating Conditions
Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30 – 70% (non-condensing)
Power Requirements
100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
Regulatory Compliance
CE, FCC, EAC
Software
GrabCAD Print
Build Modes
High-Quality Speed: (HQS) – 18.75μm
Software
GrabCAD Print
GrabCAD Print makes 3D printing easy, with thoughtful features:
- Automatically corrects files and reduces print time with automatic tray arrangement.
- Calculates the time and material resources needed for production before printing.
- 3MF file supported – significantly simplifies color assignment in your workflow.
- New feature alerts the user if there has been cross-contamination with a biocompatible material.
- Schedule and monitor the print job remotely from your mobile device or browser.
- Get automatic alerts remotely when the job is printing and finished.
