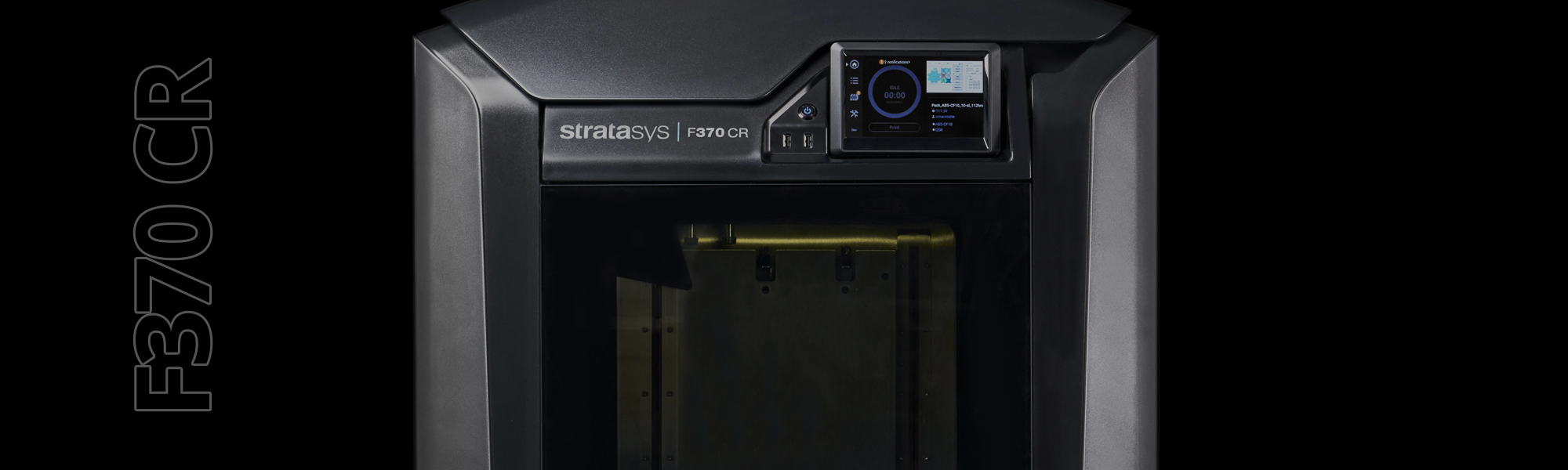

STRATASYS F370CR
A Composite Ready Industrial FDM 3D Printer
Now Serving US & Canada
high strength composite printing
The Stratasys F370CR allows you to meet deadlines and stay on budget, with high strength composite printing.
- Equipped with hardened components to operate with composite materials
- Print carbon fiber-reinforced materials like ABS-CF10 and Nylon CF10

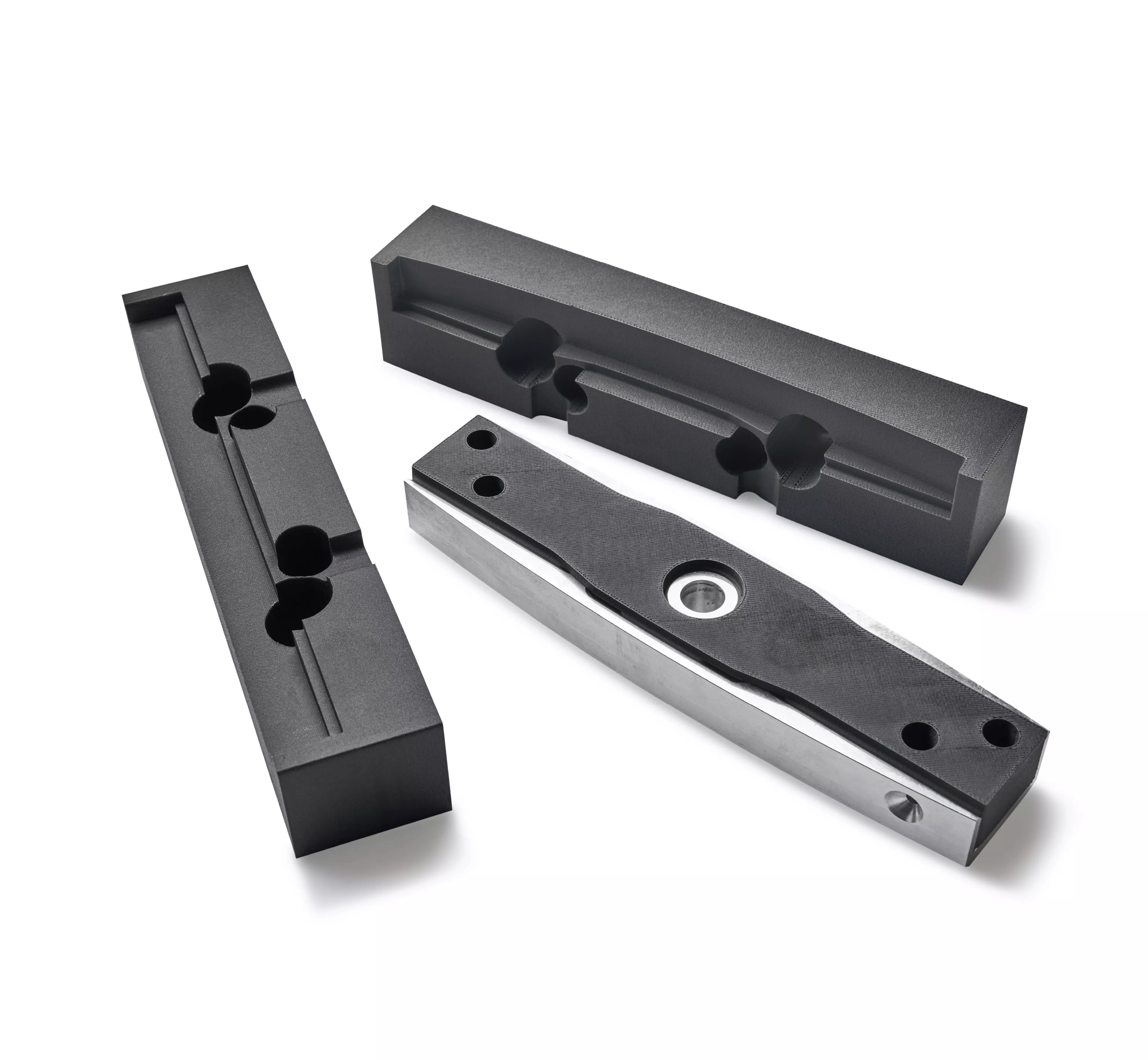

- Ideal for workholding fixtures, soft jaws, and component parts
with composite 3D printing - Print parts in a fraction of the time and cost
it takes to machine a metal equivalent.
Features
unmatched uptime
F123CR printers are built on the same platform as the proven F123 Series, with a verified 99%- uptime and a 99%-dimensional repeatability performance
Simple setup, and GO
You don’t need special training to operate F123CR printers. Job setup simply involves importing the part’s CAD file using GrabCAD Print™ software and initiating the print.
Support
Stratasys invented FDM Technology, and has been perfecting it for over 30 years. GoEngineer's Stratasys technicians and application engineers know how to maximize your printer
investment.
F370CR MATERIALS
-
-
ABS-CF10
- Potential Applications:
– Tooling
– Jigs and fixtures
– Production and assembly
– Drill guides
-
ABS-CF10 Combines standard ABS material with 10% carbon fiber by weight . This makes for a 50% stiffer than standard ABS 3D printing material and 15% stronger than standard ABS 3D printing materials.
- Learn More >
-
-
ABS-ESD7
- Potential Applications:
– End-use components
– Electronic products
– Industrial equipment
– Jigs & fixtures
-
ABS-ESD7 standard FDM thermoplastic works with soluble support technology, so support removal is hands-free and complex parts require no extra effort.
- Learn More >
-
-
ABS-M30
- Potential Applications:
– Conceptual models
– Functional prototypes
– Manufacturing tools
– Production parts
-
ABS-M30 FDM material enables you to prototype quickly and efficiently. This strong, familiar material lets you explore more ideas, test frequently, work iteratively – and ultimately take better products to market faster.
- Learn More >
-
-
ASA
- Potential Applications:
– Conceptual models
– Functional prototypes
– Manufacturing tools
– Production parts
-
Mechanical strength and UV stability make ASA a great choice for functional prototyping. Ease of use makes it a top pick for iterative design. Outstanding aesthetics and ten fade-resistant colors make it an all-around favorite, even for end-use parts.
Learn More >
-
-
Diran
- Potential Applications:
– Tooling
– Jigs & fixtures
-
Displaying functional properties of chemical resistance, high-impact strength, and a low coefficient of friction this material is well-suited for jigs and fixturing applications where non-marring robust tooling is desired.
Learn More >
-
-
FDM TPU 92A
- Potential Applications:
– Hoses, tubes, air ducts
– Protective covers & seals
– Vibration dampeners
– Prototype and end-use parts
-
Thermoplastic polyurethanes otherwise known as TPU’s are flexible elastomers found in products that require a soft touch, shock absorption, or a comforting grip. They are commonly co-molded or over-molded onto ABS and Polycarbonate substrates in sunglasses and phone/tablet cases.
- Learn More >
-
-
Nylon CF10
- Potential Applications:
–Metal forming dies
– Press brakes
– End effectors
– Alignment and assembly fixtures
-
3D printing with carbon fiber material lets you build strong, stiff, lightweight tools and parts. FDM Nylon CF10 combines nylon and carbon fibers to achieve a high flexural strength and stiffness-to-weight ratio.
- Learn More >
-
-
pc-abs
- Potential Applications:
– Conceptual models
– Functional prototypes
– Manufacturing tools
– Production parts
-
For functional prototyping, tooling, and low-volume manufacturing that requires superior impact strength, FDM Technology works with PC-ABS thermoplastic. PC-ABS also exhibits excellent feature definition and surface finish.
Learn More >
F370CR Specifications
System Size and Weight
- 1626 x 864 x 711 mm (64 x 34 x 28 in.)
- 227 kg (500 lbs.)
BUILD ENVELOPE
- 355 x 254 x 355 mm (14 x 10 x 14 in.)
MATERIALS
- ABS-CF10, ABS-M30, ABS ESD7, ASA, Diran, FDM Nylon-CF10, FDM TPU 92A, PC-ABS, QSR Support material, (*Diran requires SUP4000B support material)
MATERIAL DELIVERY
- 4 material spool bays, 2 for model, 2 for support located in a drawer on the front of the unit
ACHIEVABLE ACCURACY
- Parts are produced within an accuracy of +/- .200 mm (.008 in), or +/- .002 mm/mm
(.002 in/in), whichever is greater
SOFTWARE
-
GrabCAD Print and Insight software, MTConnect enabled
Operator Attendance
- Limited attendance for job start and stop required
OPERATING CONDITIONS
- Operating temperature: 15 – 30 ºC (59 – 86 ºF), Humidity: 30 – 70% RH
- Storage temperature: 0 – 35 ºC (32 – 95 ºF), Humidity: 20 – 90% RH
POWER REQUIREMENTS
- 100-132V/15A or 200–240V/7A. 50/60 Hz
operating System
- Windows 10 (64 bit only) and Window 11 with a minimum of 4GB RAM
(8GB or more recommended)
Regulatory Compliance
- CE (low-voltage and EMC directive), FCC, EAC, cTUVus, FCC, KC, RoHs, WEEE, Reach, RCM
Wireless Network Connectivity
- Wired: TCP/IP protocols at 100 Mbps minimum 100 base T, Ethernet protocol, RJ45 connector
- Wireless-ready: IEEE 802.11n, g, or b; Authentication: WPA2-PSK, 802.1x EAP Encryption:
CCMP, TKIP
Software
GrabCAD Print
Professional 3D Printing Made Easy and Accessible
GrabCAD Print is the most complete solution for Stratasys 3D printers on the planet. The intuitive, easy-to-use software allows for simplified preparation, scheduling, monitoring, and reporting of print jobs. With the ability to read and understand CAD files natively, GrabCAD Print offers an efficient workflow that streamlines job management in shared office and model shop environments.
INSIGHT SOFTWARE
OPTIMIZE BUILD OUTPUT FOR 3D PRINTING
(ONLY AVAILABLE ON F370) Insight software prepares your CAD program’s STL output for 3D manufacturing on a Fortus machine by automatically slicing and generating support structures and material extrusion paths. For maximum control, users can manually edit parameters that determine the look, strength, and precision of parts as well as the speed and material use of the FDM process.
- Optimize build orientation for maximum strength and smoothest surface finish
- Customize supports for fast, easy removal and best use of materials
- Program pauses into the build for any reason, such as to embed hardware or circuitry
- Manipulate tool paths for advanced control over part properties
Included with Insight is Control Center. This sophisticated software application communicates with user workstations and Fortus systems, to manage jobs and monitor production status. Design, engineering, and manufacturing teams can network and share 3D manufacturing capacity to maximize efficiency and throughput.
*Compatible with GrabCAD Print for use with job reports, scheduling, and remote monitoring.
