Article by Jonathan Rodriguez on Oct 17, 2024

Artec 3D has done it again. On the heels of the new and improved Artec Spider II comes the Artec Point - their first handheld blue laser scanner.

Best known for structured light 3D scanners, delivering incredible color depth and texture quality without targets, the existing line of Artec handheld scanners produce digital copies of physical parts accurate to within 0.05mm. Until now, sub-50 micron accuracy was reserved for static scanners, like the Artec Micro II. The blue laser technology in Artec Point adds compelling capabilities in the same handheld form factor.

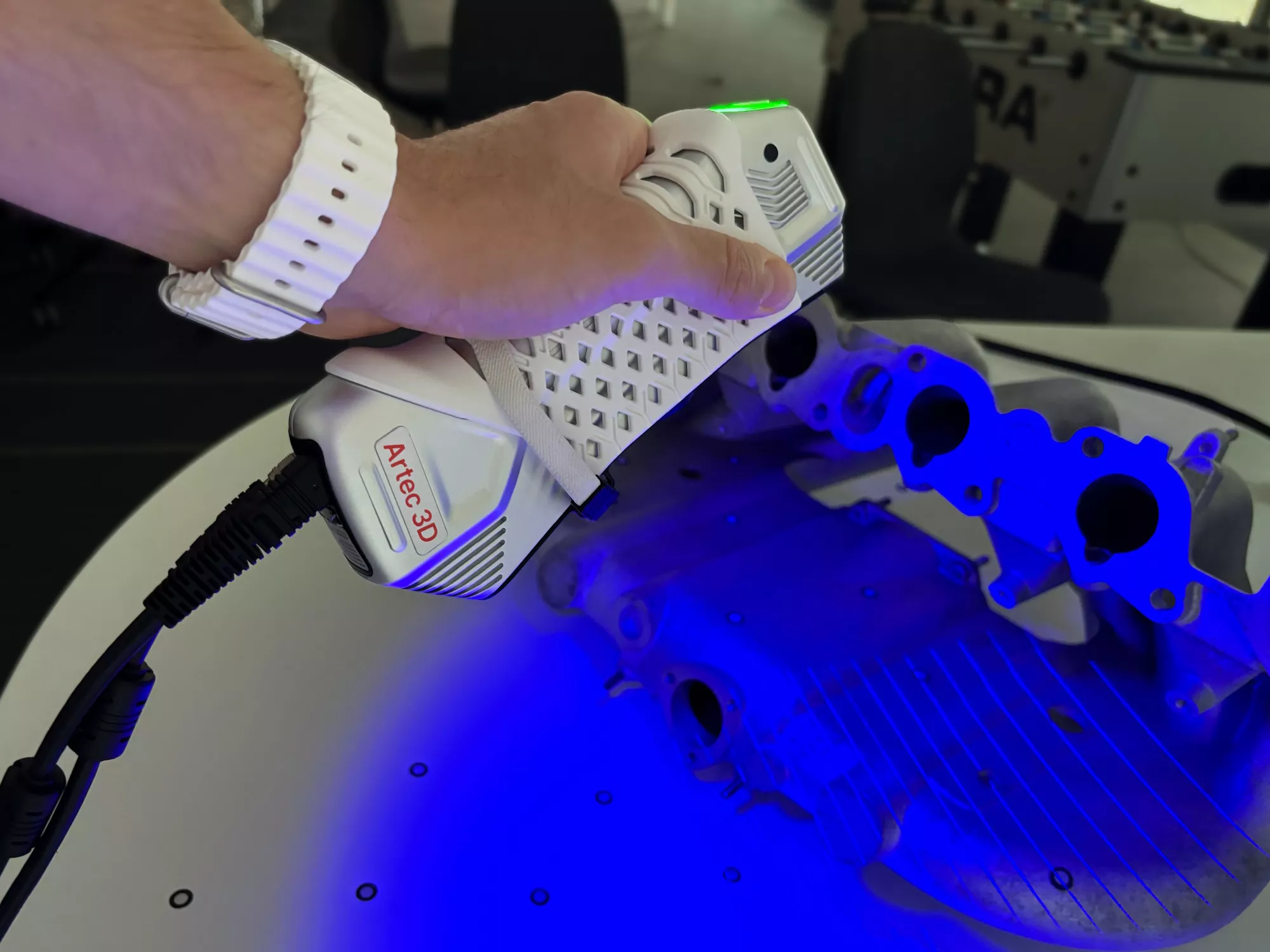

Artec 3D Point 3D Scanner Available from GoEngineer

Technical Specifications

Scanner type	Handheld	Scanning rate, up to	2.8 million measurements/s
3D light source	Blue laser, class II (eye-safe)	Capture rate, up to	120 FPS
3D point accuracy, up to	0.02 mm (0.0008 in)	Scanning area	700 × 600 mm (27.6 × 23.6 in)
Volumetric accuracy, up to	0.015 mm + 0.035 mm/m (0.0006 in + 0.0014 in/ft) 0.015 mm + 0.015 mm/m with Artec Metrology Kit (0.0006 in + 0.0006 in/ft)	Depth of field	550 mm (21.7 in)
Weight	570 grams (20.1 oz)	Size of scanning object/area	S–L
		Certification	ISO 17025 accredited based on VDI/VDE 2634 & JJF 1951

Data courtesy of https://www.artec3d.com/

Ideally suited to inspection and metrology applications, the Artec Point is ISO 17025 certified, boasting 0.02mm accuracy at 120 fps. Three scanning modes allow quick toggling between Ultra-fast scanning for large areas, Hyper-fine scanning for textures and text, and Deep Hole scanning for hard to hard-to-reach grooves or holes. Artec Studio also includes a toggle for Dark or Shiny surfaces, adjusting the capture algorithm to address these otherwise challenging part scenarios.

3D Scanned Cam Gear Using an Artec Point 3D Scanner
