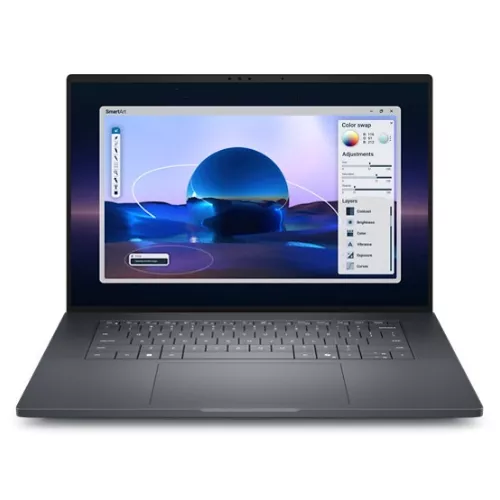

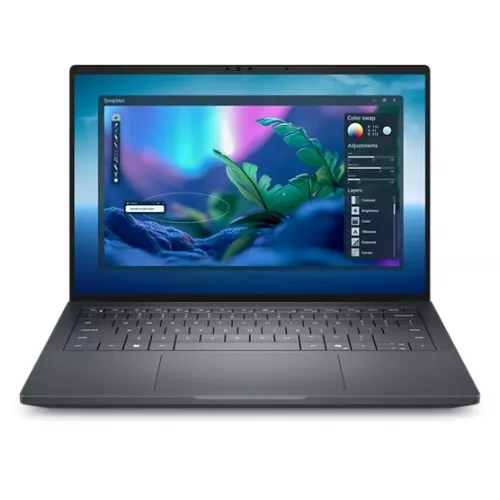

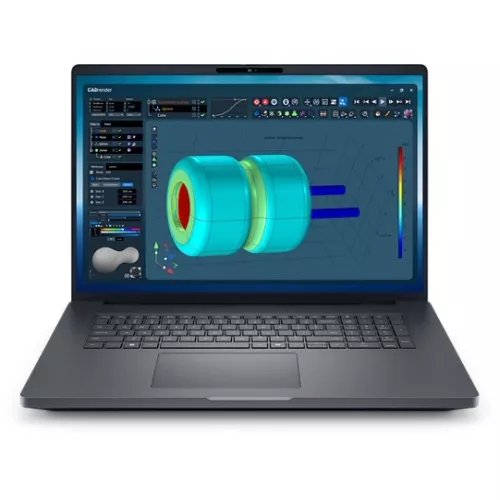

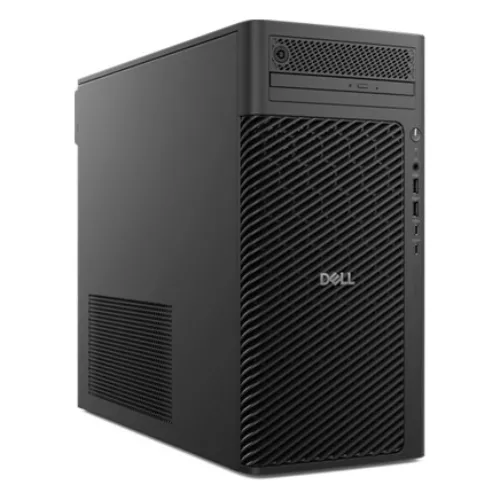

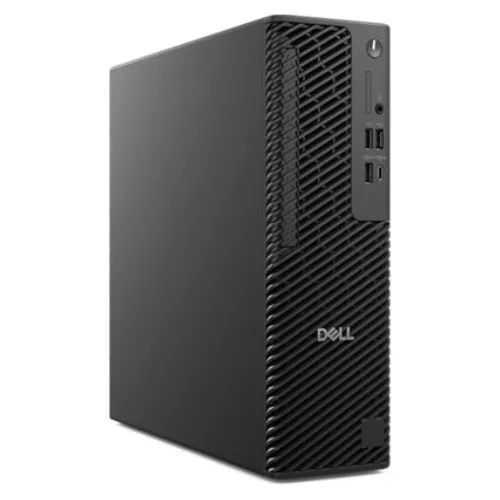

Need new Hardware?

Get customized hardware solutions configured by engineers for engineers. GoEngineer has teamed up with Dell Technologies to provide fine-tuned workstations you can trust to meet the demands of your SOLIDWORKS designs.

 Receive competitive pricing plus up to 5% off  at checkout with coupon code.



Questions regarding Dell products? Need assistance with any of the following:

·       Order delivery lead times

·       Obtaining the best pricing/discounts

·       Choosing the appropriate configuration to meet your specific needs

·       Exploring financing or lease options offered by Dell



Contact our GoEngineer / Dell Account Representative: Laura Ball laura.ball@dell.com



Computer Workstation Setups that run SOLIDWORKS Simulation

SOLIDWORKS System Requirements

SOLIDWORKS 2024



Basic System

Processor: 3.3 GHz or faster, Intel® Core i5, i7 or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 8GB or more is required
Hard Drive: Standard or Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® RTX A2000

  • System for simple parts, small assemblies (200 or fewer components), and drawings.
  • This system will support part and assembly simulations including linear statics, thermal, frequency, fatigue, and optimization. Gap and contact simulations will run on small assemblies that contain simple components.
  • This system will also support simple flow simulations.
Intermediate System

Processor: 3.3 GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 16GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® RTX A4000

  • System for complex parts with advanced shapes, large patterns, shells, 200+ features.
  • This system is also for assemblies containing 200-1000 components and drawings.
  • This system will support part and assembly simulations including non-linear, dynamics, random vibrations along with moderate gaps and contacts.
  • This system will also support moderate flow simulations.
Advanced System

Processor: 3.3GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 32GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® RTX A5000, RTX A6000, RTX 8000

  • System for very complex parts with advanced surfacing features or hybrid modeling.
  • This system is also for assemblies containing 1000 – 200,000 components.
  • This system will support large complex analysis and large flow simulations.



SOLIDWORKS 2023



Basic System

Processor: 3.3 GHz or faster, Intel® Core i5, i7 or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 8GB or more is required
Hard Drive: Standard or Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® RTX A2000

  • System for simple parts, small assemblies (200 or fewer components), and drawings.
  • This system will support part and assembly simulations including linear statics, thermal, frequency, fatigue, and optimization. Gap and contact simulations will run on small assemblies that contain simple components.
  • This system will also support simple flow simulations.
Intermediate System

Processor: 3.3 GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 16GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® RTX A4000

  • System for complex parts with advanced shapes, large patterns, shells, 200+ features.
  • This system is also for assemblies containing 200-1000 components and drawings.
  • This system will support part and assembly simulations including non-linear, dynamics, random vibrations along with moderate gaps and contacts.
  • This system will also support moderate flow simulations.
Advanced System

Processor: 3.3GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 32GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® RTX A5000, RTX A6000, RTX 8000

  • System for very complex parts with advanced surfacing features or hybrid modeling.
  • This system is also for assemblies containing 1000 – 200,000 components.
  • This system will support large complex analysis and large flow simulations.



SOLIDWORKS 2022



Basic System

Processor: 3.3 GHz or faster, Intel® Core i5, i7 or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 8GB or more is required
Hard Drive: Standard or Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards:  NVIDIA® RTX A2000

  • System for simple parts, small assemblies (200 or fewer components), and drawings.
  • This system will support part and assembly simulations including linear statics, thermal, frequency, fatigue, and optimization. Gap and contact simulations will run on small assemblies that contain simple components.
  • This system will also support simple flow simulations.
Intermediate System

Processor: 3.3 GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 16GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® RTX A4000

  • System for complex parts with advanced shapes, large patterns, shells, 200+ features.
  • This system is also for assemblies containing 200-1000 components and drawings.
  • This system will support part and assembly simulations including non-linear, dynamics, random vibrations along with moderate gaps and contacts.
  • This system will also support moderate flow simulations.
Advanced System

Processor: 3.3 GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System: Windows® 11 and 10
Memory: 32GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® RTX A5000, RTX A6000, RTX 8000

  • System for very complex parts with advanced surfacing features or hybrid modeling.
  • This system is also for assemblies containing 1000 – 200,000 components.
  • This system will support large complex analysis and large flow simulations.



SOLIDWORKS 2021



Basic System

Processor: 3.3GHz or faster, Intel® Core i5, i7 or equivalent AMD®
Operating System: Windows® 10
Memory: 8GB or more is required
Hard Drive: Standard or Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro®  P2200

  • System for simple parts, small assemblies (200 or fewer components), and drawings.
  • This system will support part and assembly simulations including linear statics, thermal, frequency, fatigue, and optimization. Gap and contact simulations will run on small assemblies that contain simple components.
  • This system will also support simple flow simulations.
Intermediate System

Processor: 3.3GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System: Windows® 10
Memory: 16GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro®  RTX 4000

  • System for complex parts with advanced shapes, large patterns, shells, 200+ features.
  • This system is also for assemblies containing 200-1000 components and drawings.
  • This system will support part and assembly simulations including non-linear, dynamics, random vibrations along with moderate gaps and contacts.
  • This system will also support moderate flow simulations.
Advanced System

Processor: 3.3 GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System Windows® 10
Memory: 32GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro®  RTX 5000, RTX 6000, RTX 8000

  • System for very complex parts with advanced surfacing features or hybrid modeling.
  • This system is also for assemblies containing 1000 – 200,000 components.
  • This system will support large complex analysis and large flow simulations.



Minimum hardware requirements for SOLIDWORKS 2021:

The minimum SOLIDWORKS system requirements can be found on the SOLIDWORKS System Requirements website.

Video:

A recommended OpenGL workstation graphics card and driver.
For a listing of recommended graphics cards and driver combinations visit the SOLIDWORKS System/Graphics Card Requirements Website.
https://www.solidworks.com/support/hardware-certification

CPU:

Intel® or AMD® with SSE2 support. A 64-bit operating system required.
SOLIDWORKS can be made to run on Apple Mac® based machines running under Parallels or BootCamp.  It is not a recommended hardware configuration.
http://www.solidworks.com/sw/support/11168_ENU_HTML.htm
NOTE: Non-server products are only supported in the Parallels environment.
eDrawings® is supported on Apple Macintosh®-based machines.

Other:

Mouse or another pointing device.
DVD drive or broadband internet connection
Microsoft Excel 2016, or 2019
Internet Explorer version 11 or Microsoft Edge
Anti-Virus ( http://www.solidworks.com/sw/support/AntiVirus_SW.html )

Network:

SOLIDWORKS is tested only with Microsoft’s Windows Networking and Active Directory network environments.
Novell networks and non-Windows based network storage devices are not supported.

OS:

Window 10®  (SOLIDWORKS 2015 SP5+)   Note : Windows Home, Small Business, and To Go editions are not supported.

SNL Server Requirements:

Windows 10®
Windows Server 2016®, 2019®
Virtual servers are supported for SNL only for the ones listed here ( http://www.solidworks.com/sw/support/11168_ENU_HTML.htm ).

PDM Professional, Standard:

The system requirements for PDM can be found here,   https://www.solidworks.com/sw/support/SystemRequirements.html

End of Life Product Info

http://www.solidworks.com/sw/support/solidworks-support.htm?tabshow=2

SOLIDWORKS 2020



Basic System

Processor: 3.3GHz or faster, Intel® Core i5, i7 or equivalent AMD®
Operating System: Windows® 10 and 7 (2020 was the last year for Windows 7 support)
Memory: 8GB or more is required
Hard Drive: Standard or Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro® P2200

  • System for simple parts, small assemblies (200 or fewer components), and drawings.
  • This system will support part and assembly simulations including linear statics, thermal, frequency, fatigue, and optimization. Gap and contact simulations will run on small assemblies that contain simple components.
  • This system will also support simple flow simulations.
Intermediate System

Processor: 3.3GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System: Windows® 10 and 7   (2020 was the last year for Windows 7 support)
Memory: 16GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro® RTX 4000

  • System for complex parts with advanced shapes, large patterns, shells, 200+ features.
  • This system is also for assemblies containing 200-1000 components and drawings.
  • This system will support part and assembly simulations including non-linear, dynamics, random vibrations along with moderate gaps and contacts.
  • This system will also support moderate flow simulations.
Advanced System

Processor: 3.3GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System : Windows® 10 and 7 (2020 was the last year for Windows 7 support)
Memory: 32GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro®  RTX 5000, RTX 6000, RTX 8000

  • System for very complex parts with advanced surfacing features or hybrid modeling.
  • This system is also for assemblies containing 1000 – 200,000 components.
  • This system will support large complex analysis and large flow simulations.



Minimum hardware requirements for SOLIDWORKS 2020:

The minimum requirements can be found on the SOLIDWORKS System Requirements website .

Video:

A recommended OpenGL workstation graphics card and driver.
For a listing of recommended graphics cards and driver combinations visit the SOLIDWORKS System/Graphics Card Requirements Website.
https://www.solidworks.com/support/hardware-certification

CPU:

Intel® or AMD® with SSE2 support. A 64-bit operating system required.
SOLIDWORKS can be made to run on Apple Mac® based machines running under Parallels or BootCamp.  It is not a recommended hardware configuration.
http://www.solidworks.com/sw/support/11168_ENU_HTML.htm
NOTE:   Non-server products are only supported in the Parallels environment.
eDrawings® is supported on Apple Macintosh®-based machines.

Other:

Mouse or another pointing device.
DVD drive or broadband internet connection
Microsoft Excel 2013, 2016, or 2019
Internet Explorer version 11 or Microsoft Edge
Anti-Virus ( http://www.solidworks.com/sw/support/AntiVirus_SW.html )

Network:

SOLIDWORKS is tested only with Microsoft’s Windows Networking and Active Directory network environments.
Novell networks and non-Windows based network storage devices are not supported.

OS:

Window 10®  (SOLIDWORKS 2015 SP5+) Note : Windows Home, Small Business, and To Go editions are not supported.
Windows 7® 64-bit professional or greater editions only (2020 is the last year for Windows 7 support)

SNL Server Requirements:

Windows 7®, 10®
Windows Server 2016®, 2019®
Virtual servers are supported for SNL only for the ones listed here ( http://www.solidworks.com/sw/support/11168_ENU_HTML.htm ).

PDM Professional, Standard:

The system requirements for PDM can be found here,      https://www.solidworks.com/sw/support/SystemRequirements.html

End of Life Product Info

http://www.solidworks.com/sw/support/solidworks-support.htm?tabshow=2

SOLIDWORKS 2019



Minimum System Requirements

Processor: 3.3GHz or faster, Intel® Core i5, i7 or equivalent AMD®
Operating System:  Windows® 10 or 7 x64
Memory: 8GB or more recommended
Hard Drive: Standard or Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro® P600, P1000 series

  • System for simple parts, small assemblies (200 or fewer components), and drawings.
  • This system will support part and assembly simulations including linear statics, thermal, frequency, fatigue, and optimization. Gap and contact simulations will run on small assemblies that contain simple components.
  • This system will also support simple flow simulations.
  • Approximate Costs: Laptop – $1600 | Desktop – $1400
Basic System

Processor: 3.3GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System : Windows® 10 or 7 x64
Memory : 8-16GB or more as required
Hard Drive: Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro® P2000 series

  • System for complex parts with advanced shapes, large patterns, shells, 200+ features.
  • This system is also for assemblies containing 200-1000 components and drawings.
  • This system will support part and assembly simulations including non-linear, dynamics, random vibrations along with moderate gaps and contacts.
  • This system will also support moderate flow simulations.
  • Approximate Costs: Laptop – $2100 | Desktop – $1800
Advanced System

Processor: 3.3GHz or faster, Intel® Core i7, Xeon or equivalent AMD®
Operating System : Windows® 10 or 7 x64
Memory: 16-32GB or more as required
Hard Drive:  Solid State Drive (SSD) > 250GB, keeping 10% drive capacity free space
Graphics Cards: NVIDIA® Quadro® P3000 P4000 series

  • System for very complex parts with advanced surfacing features or hybrid modeling.
  • This system is also for assemblies containing 1000 – 200,000 components.
  • This system will support large complex analysis and large flow simulations.
  • Approximate Costs: Laptop – $3000 | Desktop – $2500



Minimum hardware requirements for SOLIDWORKS 2019:

The minimum requirements can be found on the SOLIDWORKS System Requirements website .

Video:

A certified OpenGL workstation graphics card and driver.
For a listing of tested and certified graphics cards and driver, combinations visit the SOLIDWORKS System/Graphics Card Requirements Website.
http://www.solidworks.com/sw/support/videocardtesting.html

CPU:

Intel® or AMD® with SSE2 support. A 64-bit operating system required.
SOLIDWORKS is supported on Apple Mac® based machines running under Parallels.
http://www.solidworks.com/sw/support/11168_ENU_HTML.htm
NOTE: Non-server products are only supported in the Parallels environment.
eDrawings® is supported on Apple Macintosh®-based machines.

Other:

Mouse or another pointing device.
DVD drive or broadband internet connection
Microsoft Excel 2010, 2013, or 2016
Internet Explorer version 8 or higher
Anti-Virus ( http://www.solidworks.com/sw/support/AntiVirus_SW.html )

Network:

SOLIDWORKS is tested only with Microsoft’s Windows Networking and Active Directory network environments.
Novell networks and non-Windows based network storage devices are not supported.

OS:

Window 10®  (SOLIDWORKS 2015 SP5+) Note : Windows Home, Small Business, and To Go editions are not supported.
Windows 7® 64-bit professional or greater editions only

SNL Server Requirements:

Windows 7®, 10®
Windows Server 2012® R2, 2016®
Virtual servers are supported for SNL only for the ones listed here ( http://www.solidworks.com/sw/support/11168_ENU_HTML.htm ).

PDM Professional, Standard:

The system requirements for PDM can be found here,   http://www.solidworks.com/sw/support/PDMSystemRequirements.html

End of Life Product Info

http://www.solidworks.com/sw/support/solidworks-support.htm?tabshow=2

System Samples

Minimum System from Dell®

SOLIDWORKS 2019 Hardware Reccomendations Precision 7520 Summary

Figure 1 – Minimum System Sample from Dell®

Basic System from Dell®

SOLIDWORKS 2019 Hardware Recommendations Dell 7520 Summary

Figure 2 – Basic System Sample from Dell®

Advanced System from Dell®

Hardware Recommendations SOLIDWORKS 2019 Dell Precision 7720

Figure 3 – Advanced System Sample from Dell®

SOLIDWORKS PDM System Requirements

SOLIDWORKS PDM 2024

SOLIDWORKS PDM Professional will utilize up to 3 primary components: A Microsoft SQL Server (SQL) database server, an Archive Server for files, and an optional Web Server.
• For PDM systems with under 20 concurrent users, the components can typically be combined on one machine. For PDM systems with 20 or more concurrent users, the system load may require those components to be separated onto individual machines.
• Customers are required to secure proper Microsoft SQL Server Standard licenses for their system. Contact your Microsoft reseller for specific details.
• For a geographically distributed, multi-facility environment, it is often desirable to have replicated Archive (file) Server machines at each replicated site.
• For optional replicated SQL database servers (must be read-only secondary) Microsoft SQL Server Enterprise licenses are required, limited support is available from SOLIDWORKS/GoEngineer for these types of configurations, and each must be installed on standalone server machines.
• Specifications also apply for SOLIDWORKS Manage, which utilizes similar resources to PDM Professional.
• For PDM systems with over 100 concurrent users, environment-specific resource utilization information should be considered.

 Standalone database server

CPU and RAM are important considerations

Category Recommended Configuration Comments
Operating System Windows Server 2019 and 2022 (64-bit only) Windows Server 2016 is not supported
Processor Intel or AMD
At least four processor cores (minimum two)***
At least 2.0 GHz base clock speed
The fastest possible clock speed should be provisioned.
Memory Baseline: 16 GB
If (file count > 100,000) or (user count > 20): 16-32 GB
SQL should have enough RAM to load the entire database into RAM.
Disk for Database High-speed PCIe SSD for physical servers
100 GB of storage space
SATA drives are also supported, but a 100 GB partition on an M.2 PCIe NVMe drive may be the fastest option.
SQL Server Platform SQL Standard Edition 2022 or SQL 2019 with Cumulative Update 4 or greater PDM 2024 is the End of Life for SQL 2017 support.



 Standalone web server

CPU, RAM, and Network Speeds are important considerations

Category Recommended Configuration Comments
Operating System Windows Server 2019 and 2022 (64-bit only) Windows Server 2016 is not supported
Processor Intel or AMD
At least 2.0 GHz base clock speed
Multiple cores allow the server to handle multiple Web 2 requests simultaneously
Memory 32 GB

 Standalone archive server

Input/output speed and storage are important considerations

Category Recommended Configuration Comments
Operating System Windows Server 2019 and 2022 (64-bit only) Windows Server 2016 is not supported
Processor Intel or AMD
Memory 8-16 GB
Disk for File Storage** For a new system: 500 GB (200 GB minimum)

* Each PDM Professional implementation is unique, please consult a GoEngineer PDM Strategist for additional details.

** Disk space estimates are provided to cover 3 years of storage growth. Storage requirements typically grow faster in a vault system than over a normal network. If installing in a replicated environment, each additional
archive server will be sized based on the total % of the vault archived to that server. For example, if Site A is configured to replicate 50% of the files to site B, then Site B may need 50% of the disk space.

*** The two most common Microsoft SQL licensing models are Core and Server+Client Access License (CAL).

  • The SQL Core license model allows unlimited client device access to the database and is sold in 2-core packs. To fully utilize a quadcore processor, two SQL 2-core pack licenses are needed.
  • The Server+CAL model allows unlimited cores. To fully utilize a quad-core processor, one Server license is needed, but additional CAL licenses must be purchased for each user or device utilizing the SQL database. For example, PDM licenses are floating and may be shared among many users, however, CALs are not shared, so additional (i.e., more than the total number of PDM licenses) may need to be purchased for each machine/user to be compliant with Microsoft’s Licensing Model. Please contact a GoEngineer PDM Strategist for SQL licensing requirements and recommendations.”

SOLIDWORKS Services:

Utilize GoEngineer’s Award Winning Support & Training for SOLIDWORKS

Award Winning Technical Support

GoEngineer's extensive SOLIDWORKS technical knowledge and world class support can help you succeed with SOLIDWORKS. Our award-winning team is ready to help you with any task you may have. Using state-of-art remote assistant technology software allows our team to solve most issues within one session. Reach out and see why GoEngineer is the #1 reseller of SOLIDWORKS and Stratasys systems in the world!

  • 125+Certified Technical Specialists
  • Email, Phone and Chat Support Available
  • 98% Exceptional Customer Service Rating

LEARN MORE

PROFESSIONAL SOLIDWORKS TRAINING

GoEngineer offers online and classroom professional SOLIDWORKS training for organizations and individuals. All our instructors are SOLIDWORKS certified and teach thousands of students each year world wide. The curriculum is very diverse with numerous certified SOLIDWORKS courses to choose from. Each student will receive a Course Completion Certificate and preparation materials for SOLIDWORKS certification.

  • Increase Your Earning Potential
  • Led by Certified SOLIDWORKS Instructors
  • Smaller Classes with Focused Attention

LEARN MORE

Additional Resources

Take Advantage of GoEngineer’s Extensive Knowledge Base and Resources

GoEngineer Knowledge Base and website search

Find a Solution

Our robust Knowledge Base contains over 12,000 resources to help answer your product design questions. From basic CAD questions to in-depth guides and tutorials, find your solution here. Find a Solution

Get Certified Professional SOLIDWORKS Training at GoEngineer

PROFESSIONAL TRAINING

Improve your skills with professional training and certifications in SOLIDWORKS, CAM, 3D Printing, and 3D Scanning offered four ways: self-paced, online, on-site, or in-classroom. Certified Training Courses

GoEngineer blog page

BLOG

#1 Technical Resource Worldwide - Right at your fingertips. Search or browse through hundreds of SOLIDWORKS tips & tricks, additive manufacturing product developments, announcements, how-to guides, and tutorials. Blog

GoEngineer YouTube Channel

YouTube Channel

Our YouTube channel hosts hundreds of educational tutorials, product demonstrations, recorded webinars, and best practices for all of our products and services. GoEngineer's YouTube Channel

Order 3D printing materials and consumables from GoEngineer

ONLINE STORE

Order 3D printing materials and consumables, enroll in SOLIDWORKS training classes, and buy official GoEngineer gear directly from our online store. Online Store

Webinars offered by GoEngineer

WEBINARS

Our engineering webinars are hosted by some of the top experts in the industry. They are always recorded, always free, and always offer a live Q&A. WEBINARS

3D design and part printing services available at GoEngineer

3D Printing Services

Need to 3D print a part? Our Additive Manufacturing experts will 3D print your part and deliver it to you using the latest technology on one of our professional FDM, PolyJet and SL 3D printers.  3D Printing Services

Simulation Services Available at GoEngineer.

Simulation Services

GoEngineer's CAE consultants help you design better products faster. Our advanced FEA & CFD services provide critical engineering insight to world-class OEMs, suppliers, and start-ups alike.Simulation Services
